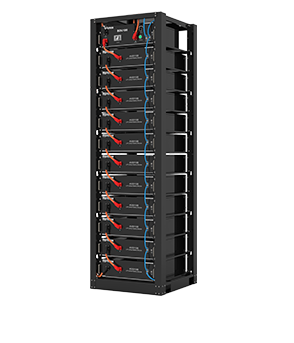

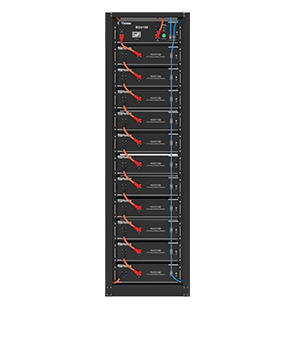

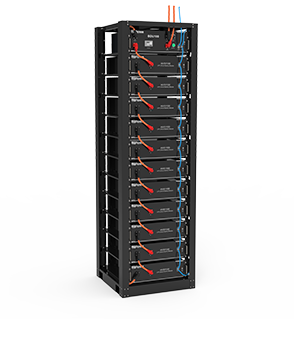

PowerRack HV4
- 35.84kWh/56.32kWh

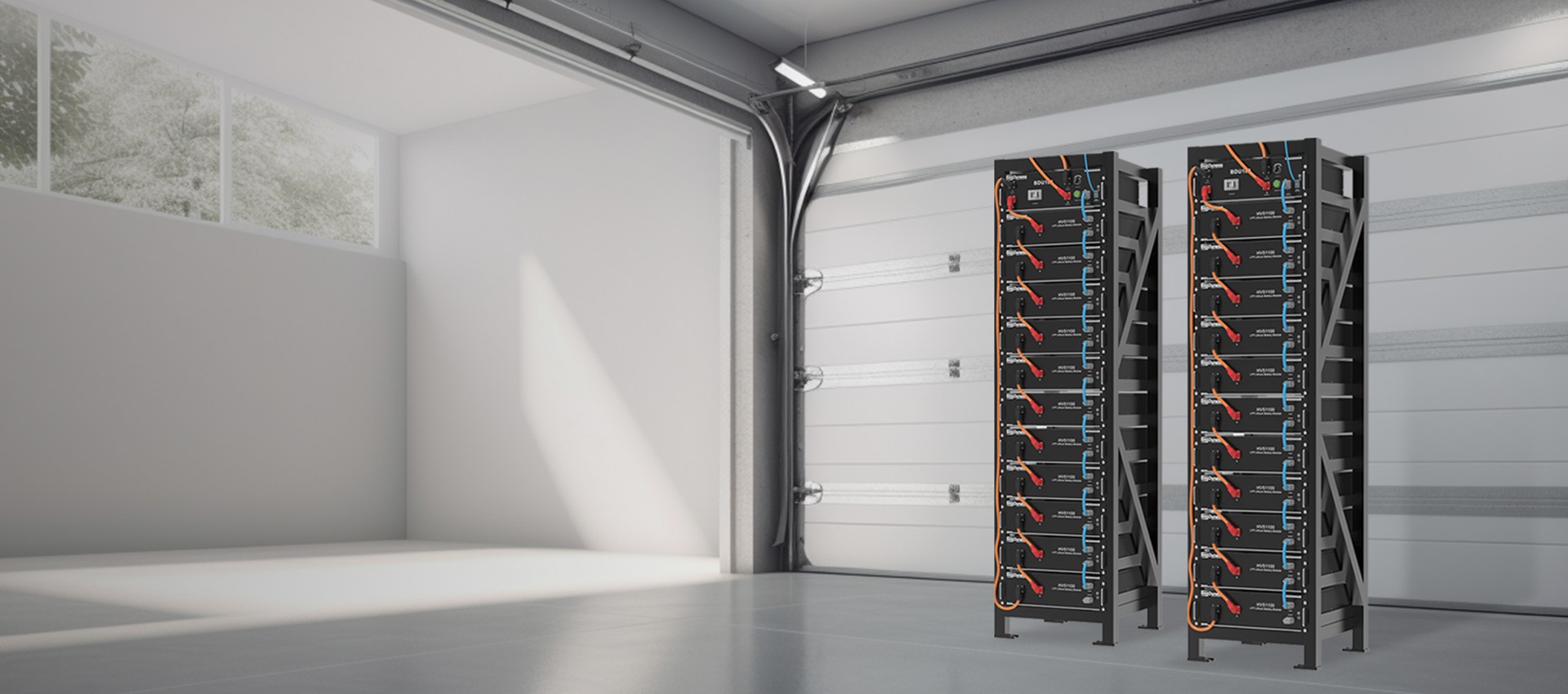

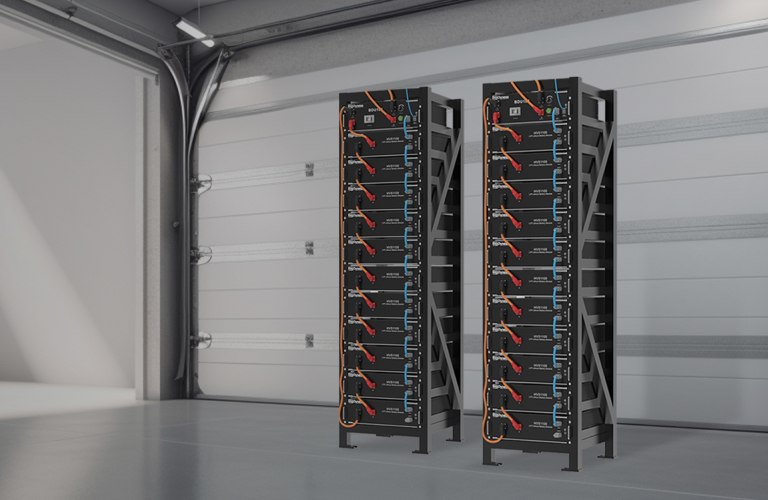

Dyness HV4 rack system is also designed for indoor use high-voltage systems, with a larger capacity of each module to fit medium C&I scenarios, to increase solar self-consumption, provide backup power or peak-shavings, etc.
Product Features
-
Voltage Range
179~876V -
High Safety LFP
LFP & smart BMS -
Expandable
Capacity up to 76.8kWh per cluster -
Tailor-made Cabinet
Suitable for multi-module installation -
High Voltage
High system effeiciency -
Wide Application
Cover all needs in commercial fields
Technical Specifications
-
Rack Type PowerRackHV4-7s
Nominal Battery Energy
35.84kWh
Nominal Capacity
100 Ah
Nominal Voltage
358.4V
Battery Module Type
HV51100
Battery Module Quantity
7 units
Dimension(W*D*H)
548*568*1412mm
Net Weight
≈397.5 kg
-
Rack Type PowerRack HV4-11s
Nominal Battery Energy
56.32kWh
Nominal Capacity
100 Ah
Nominal Voltage
563.2V
Battery Module Type
HV51100
Battery Module Quantity
11 units
Dimension(W*D*H)
548*568*2012mm
Net Weight
≈646.5 kg
